MA5300

MA5300
€ 7.450,00

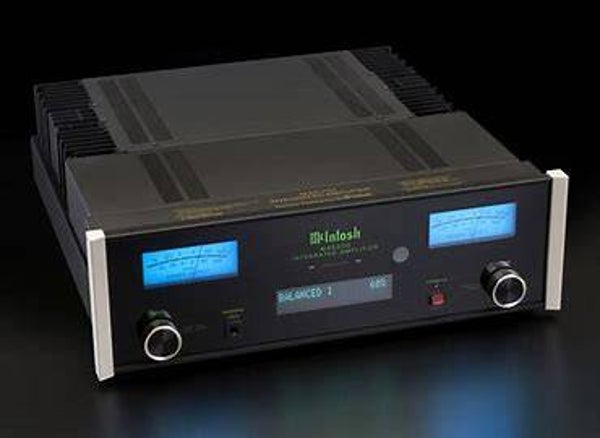

De McIntosh MA5300 is de eerste geïntegreerde versterker en bezit de echte McIntosh solidstate sound.

De MA5300 heeft 100 Watt per kanaal levert aan 8 Ohm luidsprekers. Net als de andere McIntosh versterkers bezig de MA5300 Power Guard®, Sentry Monitor™, Home Theater PassThru en de uitzondelijk presterende High Drive hoofdtelefoonversterker met Headphone Crossfeed Director HXD®.

De vele aansluitmogelijkheden van de MA5300 maakt het een breed inzetbare versterker.

Specifications:

  • Vacuum Tube or Solid State: Solid State
  • Output Type: Direct Coupled
  • Output Meters: Yes
  • Dual Layer Chassis: Yes
  • Chassis Finish: Black painted steel
  • McIntosh Monogrammed Heatsinks™: Yes
  • Standby Power Requirement: <0.25 Watts
  • Power Output per Channel: 100 Watts into 8 Ohms, 160 Watts into 4 Ohms
  • Number of Channels: 2
  • Speaker Impedance: 4 or 8 Ohms
  • Rated Power Band: 20Hz to 20kHz
  • Total Harmonic Distortion: 0.005%
  • Dynamic Headroom: 1.8dB
  • Frequency Response +0,-0.5dB: 20Hz to 20kHz
  • Frequency Response, +0, -3dB: 10Hz to 100kHz
  • Sensitivity Phono (Moving Magnet): 2.5mV
  • Sensitivity High Level (Balanced / Unbalanced): 0.5V/0.25V
  • Sensitivity (Power Amp input): 1V
  • Signal To Noise Ratio (Moving Coil): N/A
  • Signal To Noise Ratio (Moving Magnet): 82dB
  • Signal To Noise Ratio (High Level): 95dB
  • Signal To Noise Ratio (Power Amp input): 110dB
  • Input Impedance (Balanced / Unbalanced): 20K/20K
  • Damping Factor: 8 Ohms: >200, 4 Ohms: >100
  • Maximum Output (Balanced / Unbalanced): 8V Unbalanced

Connectivity

  • Balanced Input: 1
  • Unbalanced Input: 4
  • Phono Input Moving Coil: 0
  • Phono Input Moving Magnet: 1 (fixed loading)
  • Upgradeable Digital Audio Module: Yes, DA1
  • Digital Coaxial Input: 2
  • Digital Optical Input: 2
  • Digital MCT Input: 1
  • Digital USB Input: 1
  • HDMI (ARC) Input: 0
  • Balanced Variable Output: 0
  • Unbalanced Fixed Output: 0
  • Unbalanced Variable Output: 1
  • Headphone Output: 1/4″ High Drive with Headphone Crossfeed Director (HXD®)
  • Subwoofer Output: 0
  • AM/FM Tuner option: No
  • Home Theater PassThru: Yes
  • Unbalanced Analog Connector Type: Standard
  • Speaker Binding Post Type: Standard
  • Service Port: 1

Digital Specifications

  • Digital-to-Analog Converter (DAC) Type: 8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
  • Digital Coaxial Input Sample Rate: 24-bit/44.1kHz to 192kHz
  • Digital Optical Input Sample Rate: 24-bit/44.1kHz to 192kHz
  • Digital MCT Input Sample Rate: 16-bit/44.1kHz (CD), DSD64 (SACD)
  • Digital USB Input Sample Rate: 32-bit/44.1kHz to 384kHz (PCM), DSD64, DSD128, DSD256, DXD352.8kHz,

Tone Control:

  • Tone Controls: Bass and Treble
  • Tone Bypass and Input Assign: Yes
  • RS232 Control Input: Yes
  • Power Control Output: 1 Main
  • Rear Panel Data Port: 2
  • Rear Panel IR Sensor Input: Yes
  • Input Level Match: Yes

Weight:

  • Unit Dimensions (W x H x D): 44.45cm x 15.2cm x 47.6cm
  • Unit Weight: 17.2 kg
  • Shipping Weight: 25.2 kg
